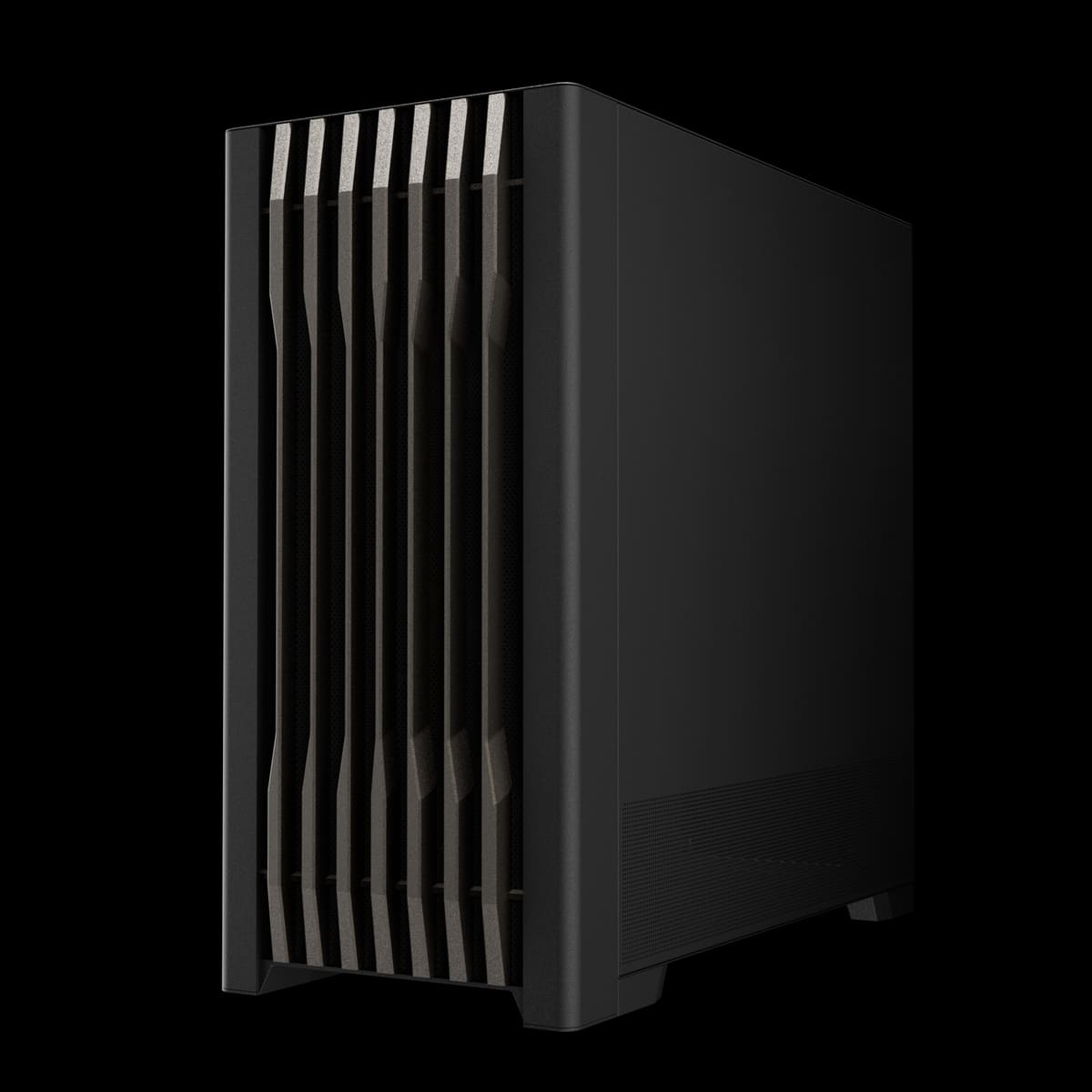

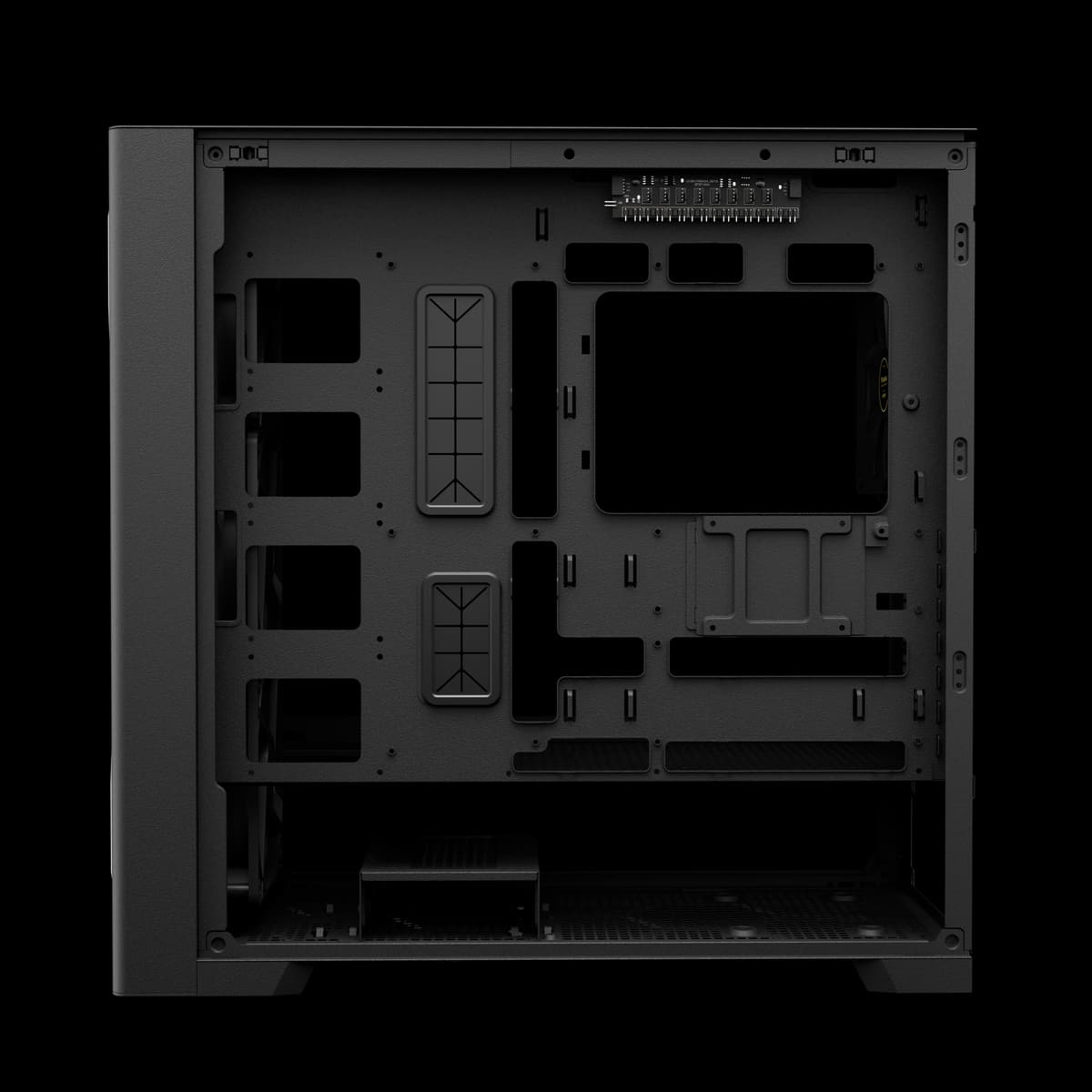

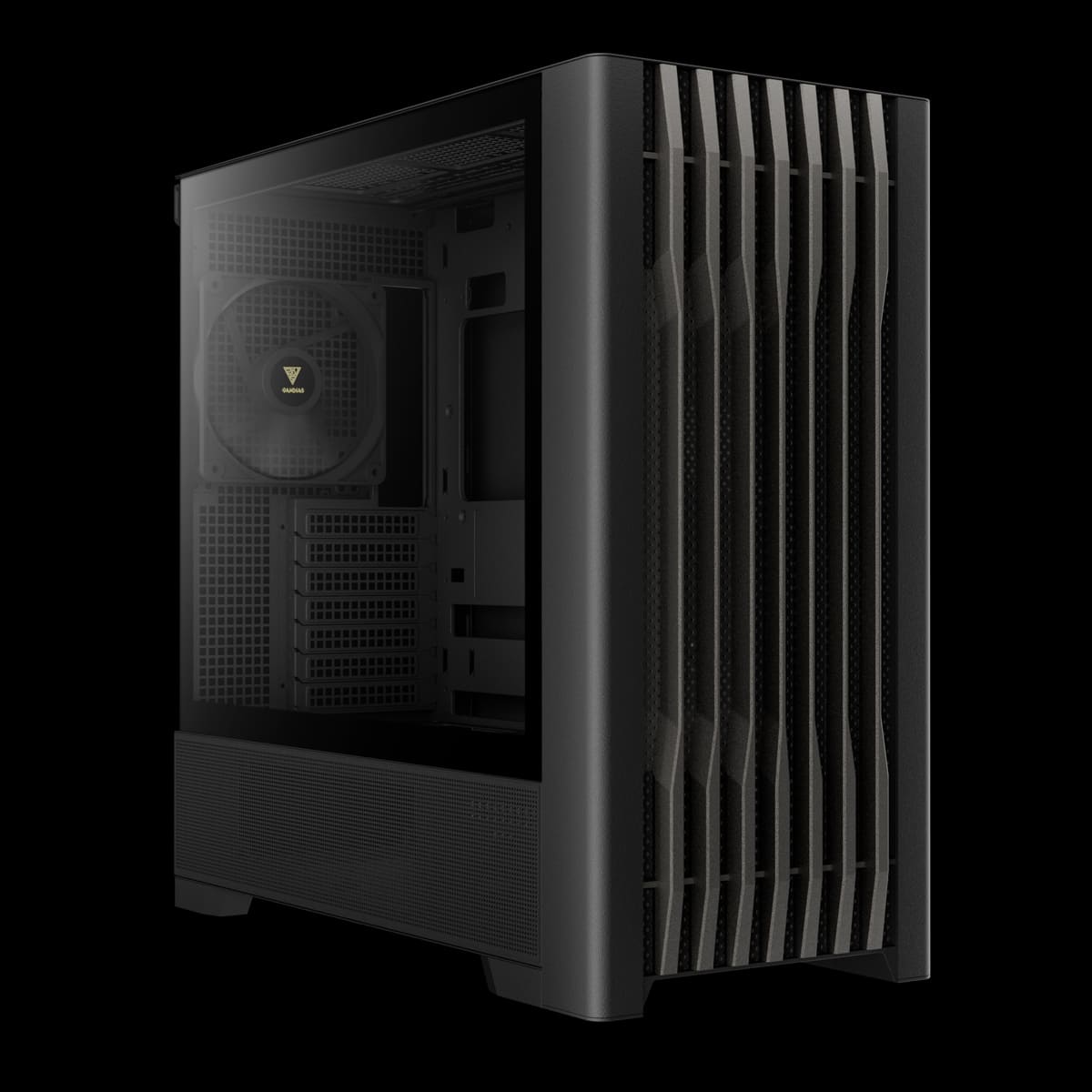

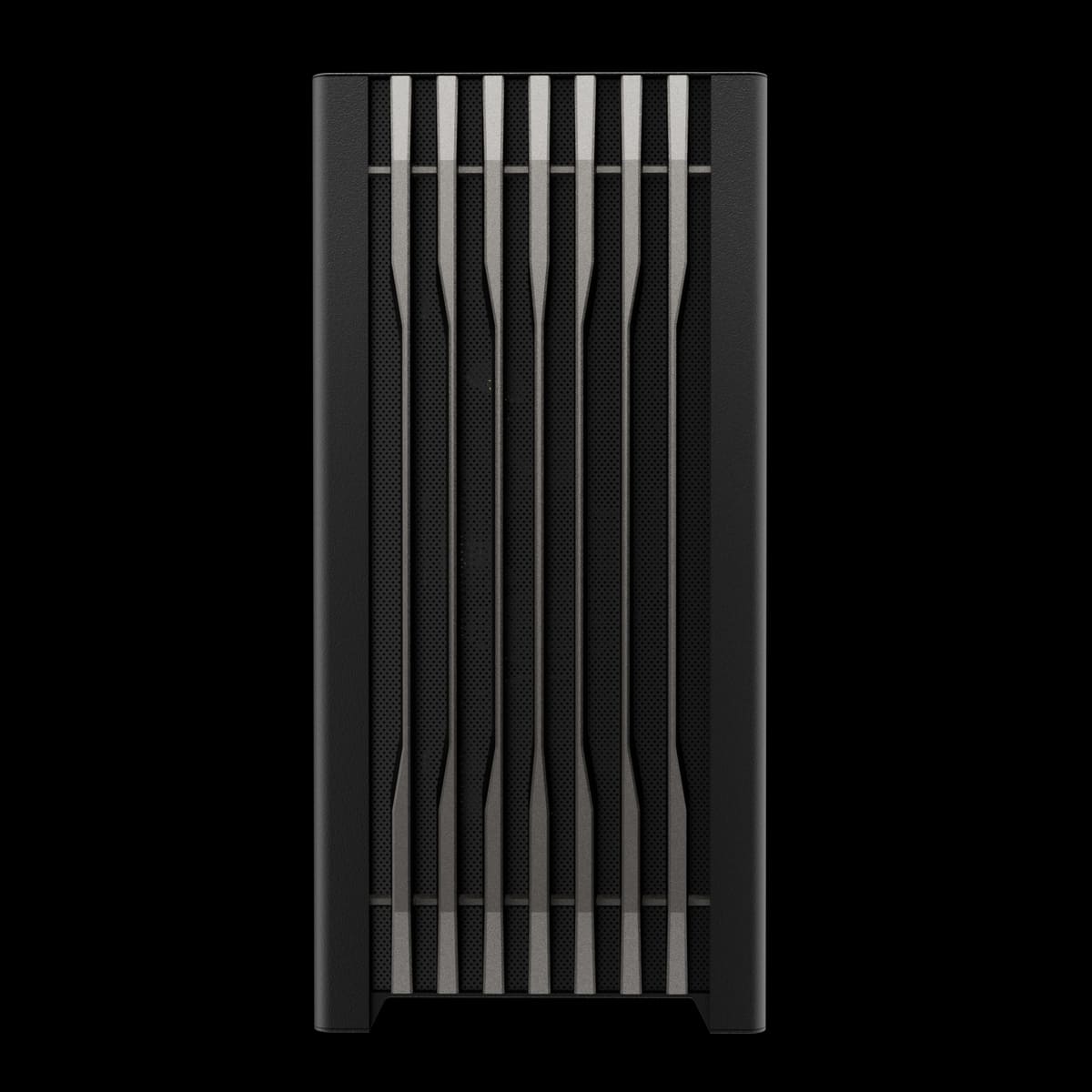

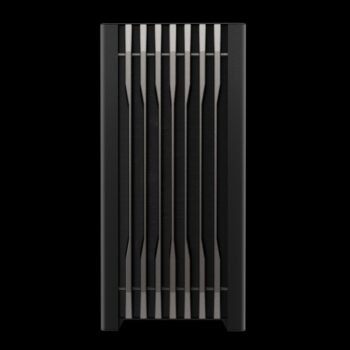

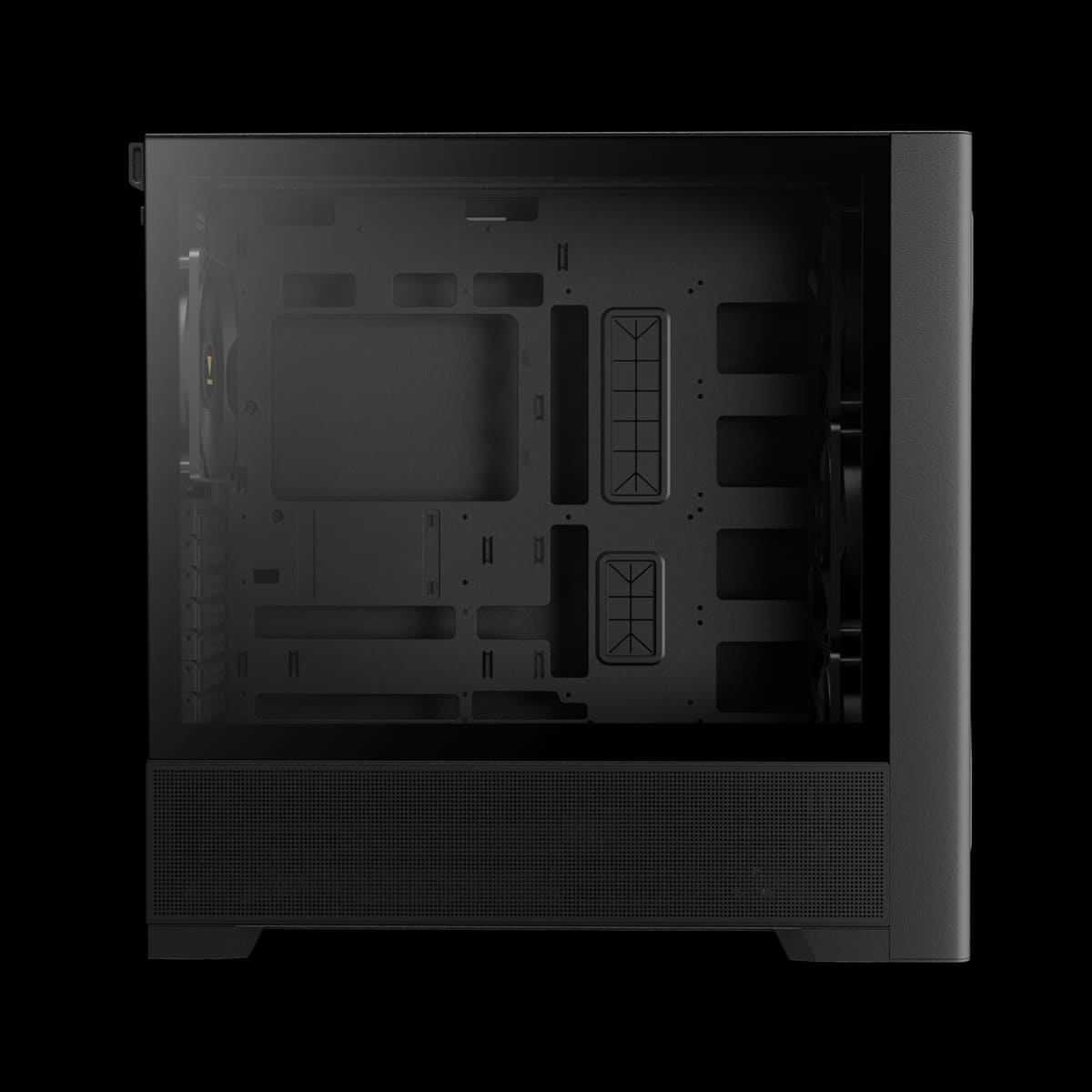

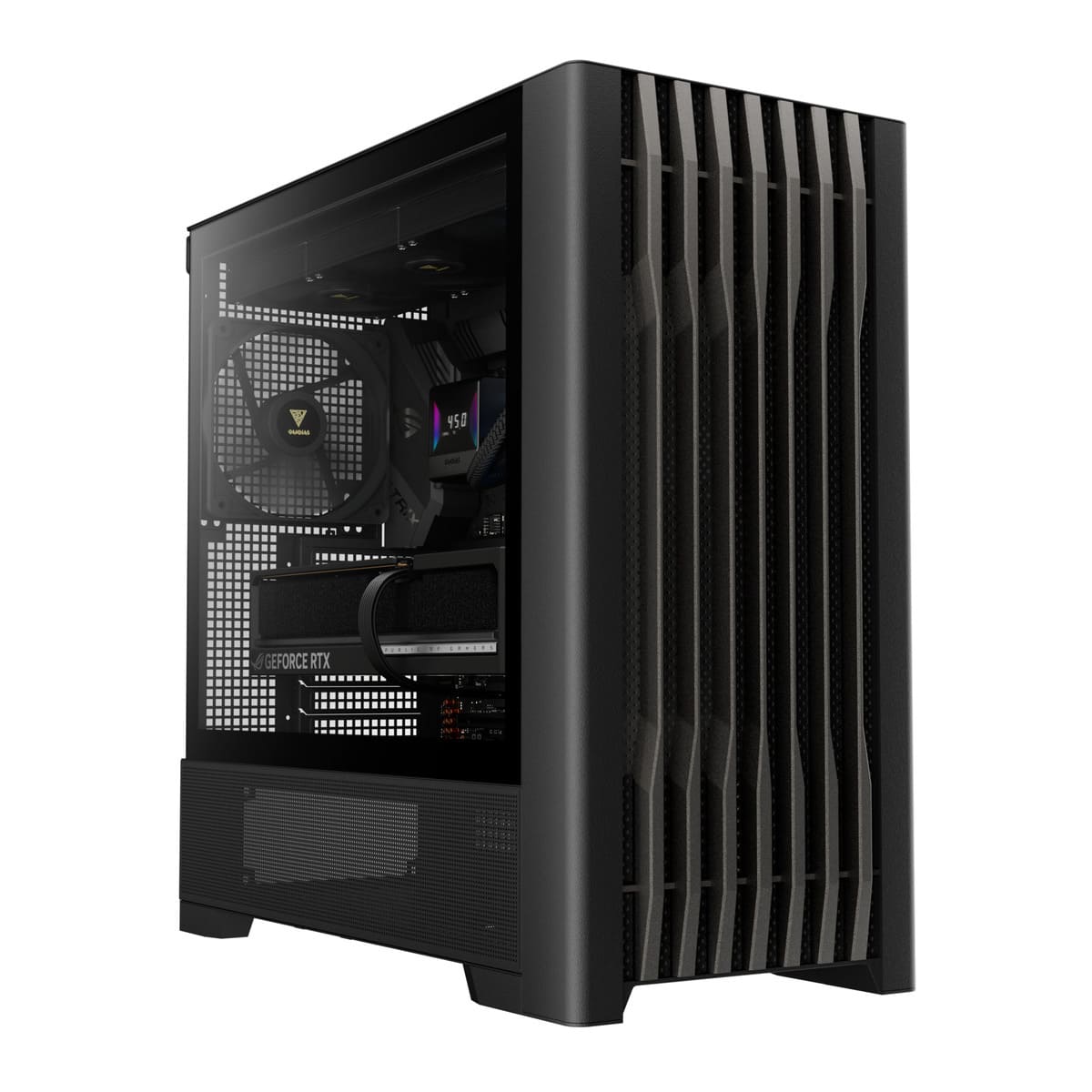

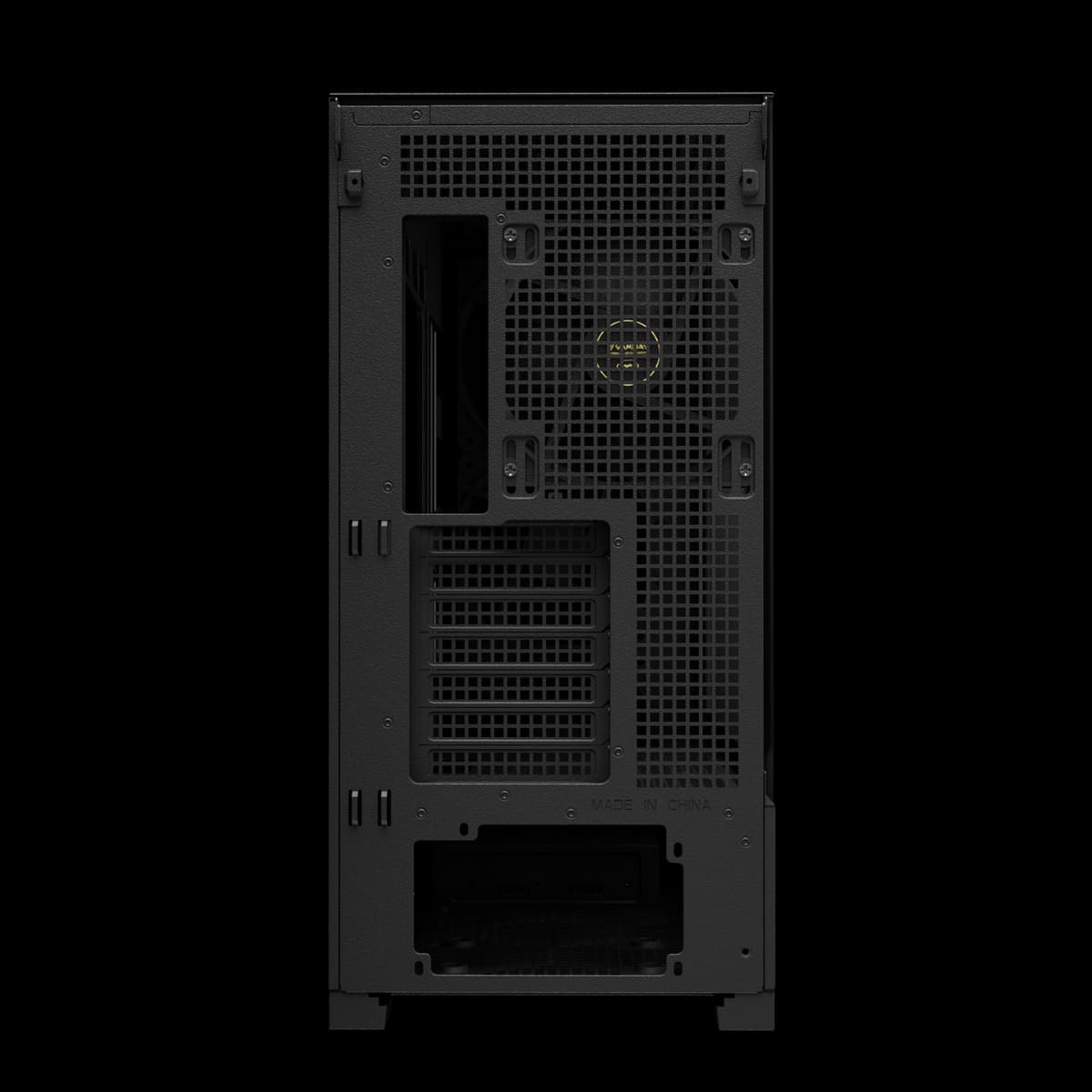

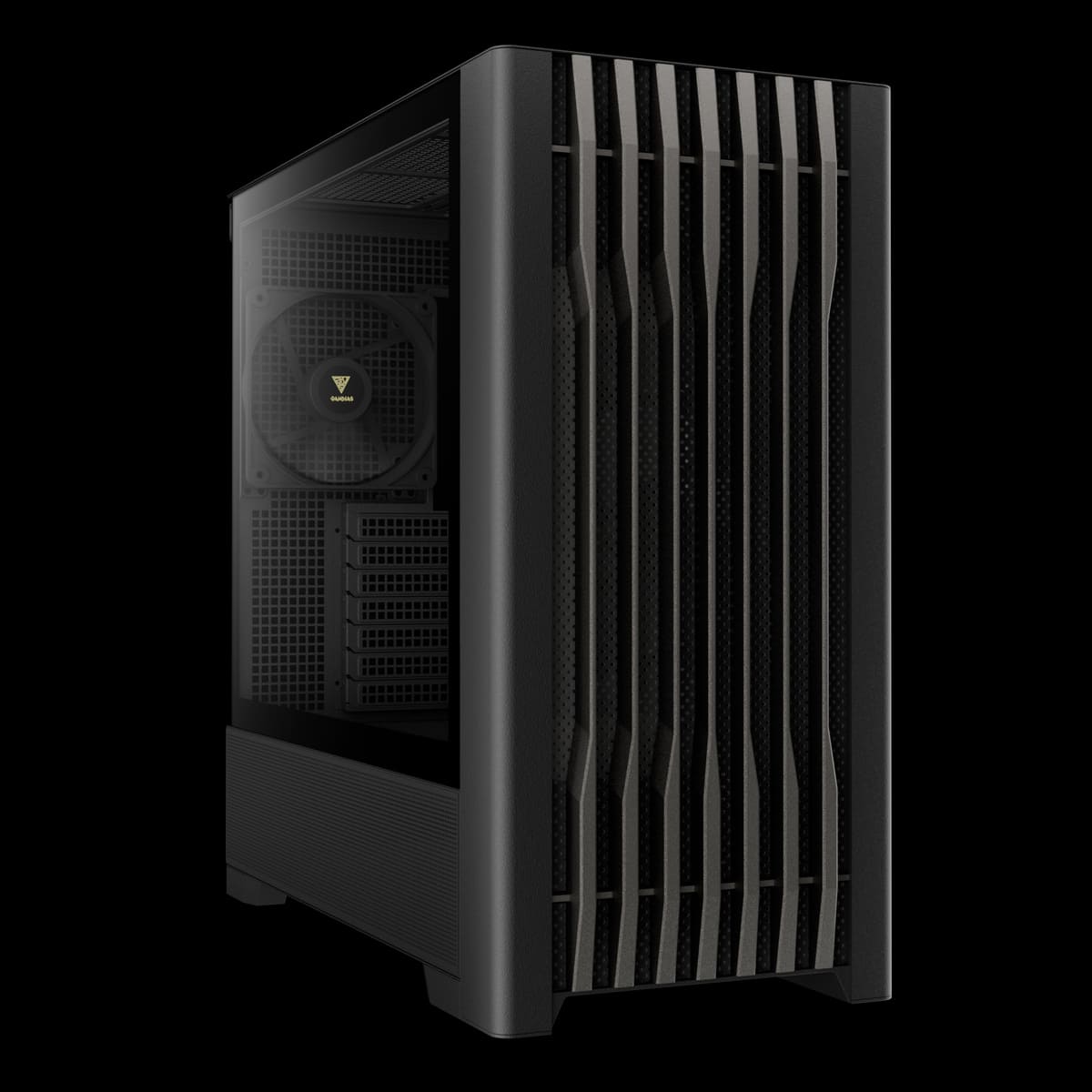

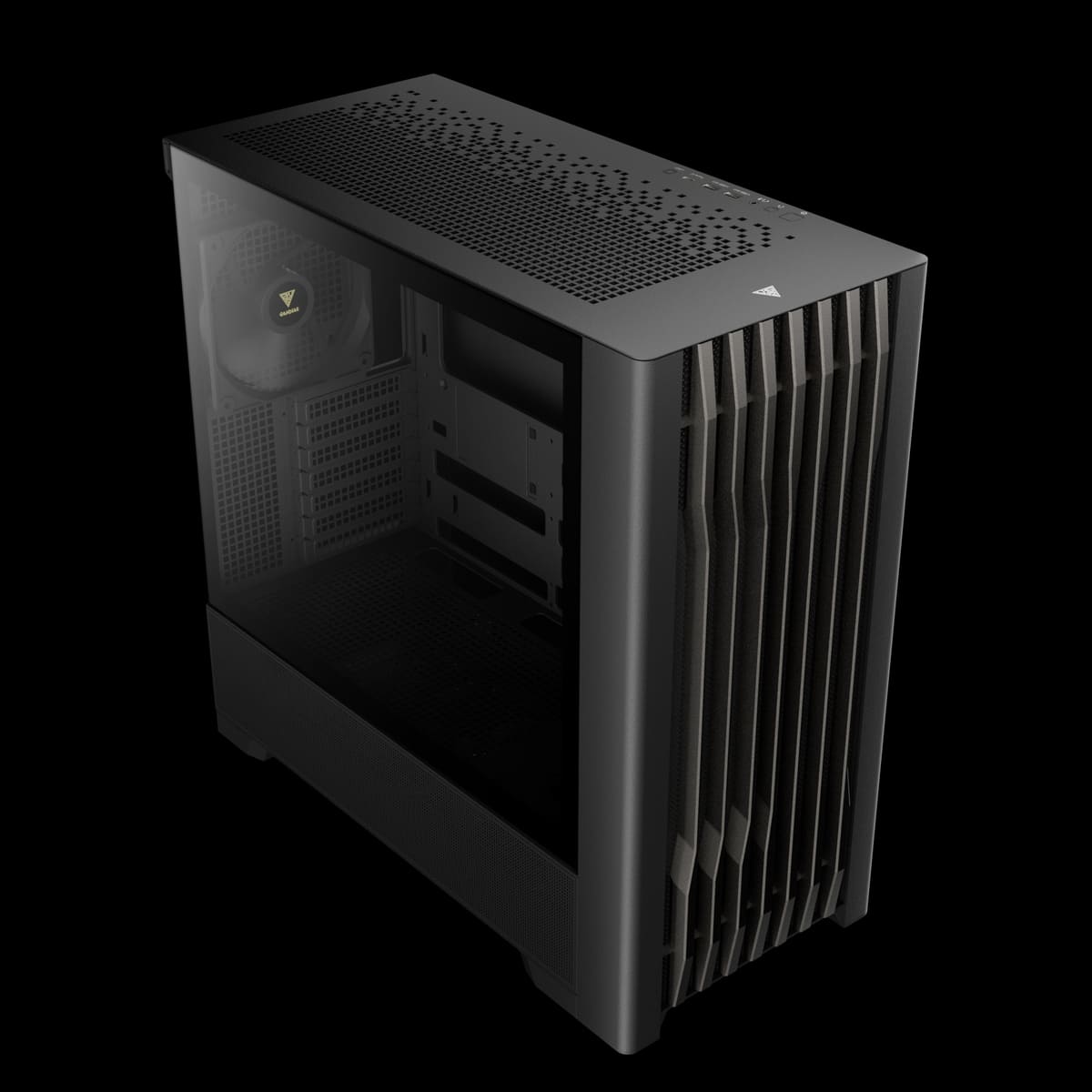

Gamdias ATHENA P3 Black 4 Fan Mid-Tower Case
SPECIFICATIONS
Model : ATHENA P3
Case Type : MID Tower
MB Support : E-ATX、ATX、Micro-ATX、Mini-ITX
Synchronization : 5V 3-Pin Addressable Header
CASE Color : Black
Expansion Slots : 7
Material : SPCC & ABS & Tempered glass
Window : Left
Radiator Support : Top: 360mm, 280 mm
Front: 420 mm, 280 mm
Rear: 120 mm, 140mm
Front: 420 mm, 280 mm
Rear: 120 mm, 140mm
Fan Support : Top: 3 x 120mm , 3 x 140mm
Front: 3 x 120mm , 3 x 140mm
Rear: 1 x 120mm, 1 x 140mm
Bottom: 2 x 120mm, 2 x 140mm
Front: 3 x 120mm , 3 x 140mm
Rear: 1 x 120mm, 1 x 140mm
Bottom: 2 x 120mm, 2 x 140mm
Pre-installed Fans : Front: 3 x 140mm PWM Fans
Rear: 1 x 140mm PWM Fan
Rear: 1 x 140mm PWM Fan
Drive Bays2 x 3.5″ or 2 x 2.5″+1 x 3.5″(HDD Cage) 1 x 2.5″ (SSD Bracket)
I/O Port : USB 3.0 x 2, Type C x 1, HD Audio x1, LED Control x1
Clearance : CPU cooler height limitation:180mm
VGA length limitation:430mm
PSU length limitation:220mm
VGA length limitation:430mm
PSU length limitation:220mm
Dimension (L x W x H) : 500 x 238 x 500 mm
Pre-installed Control BOX : 8 Ports Hub (4 port are used)
