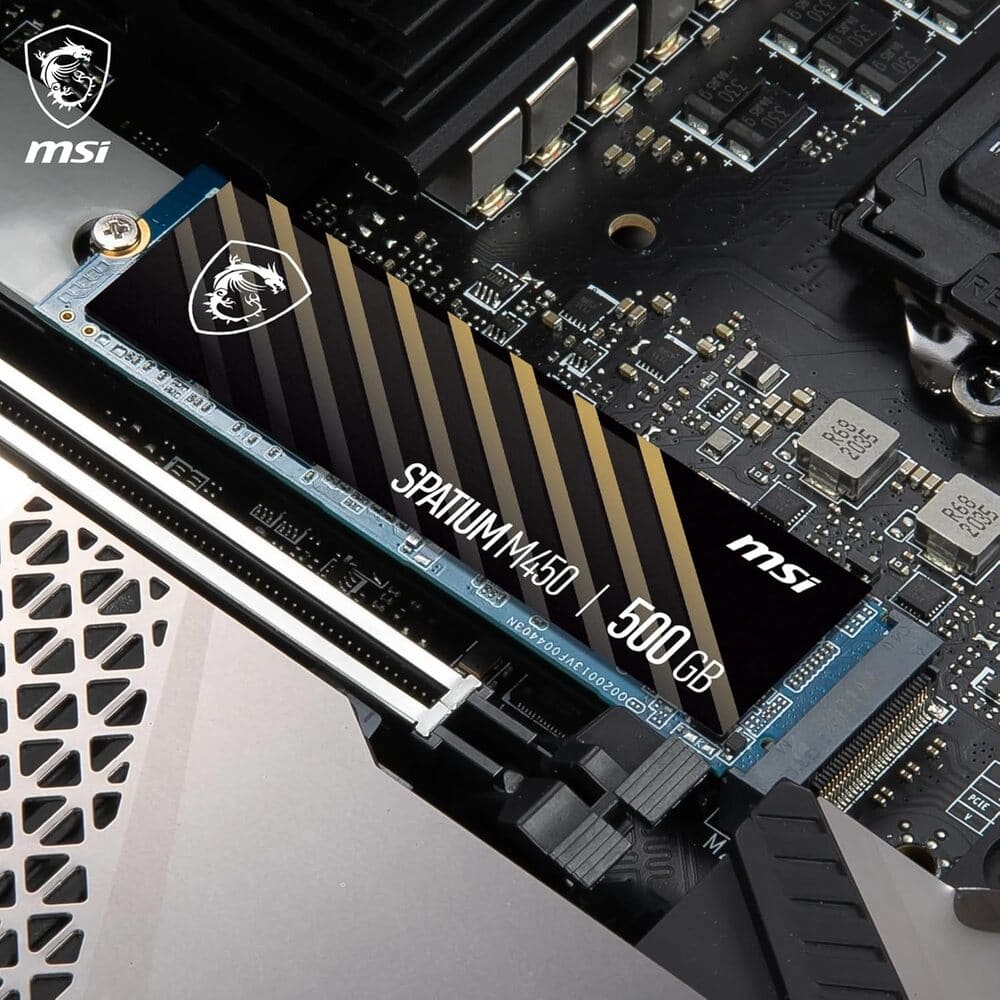

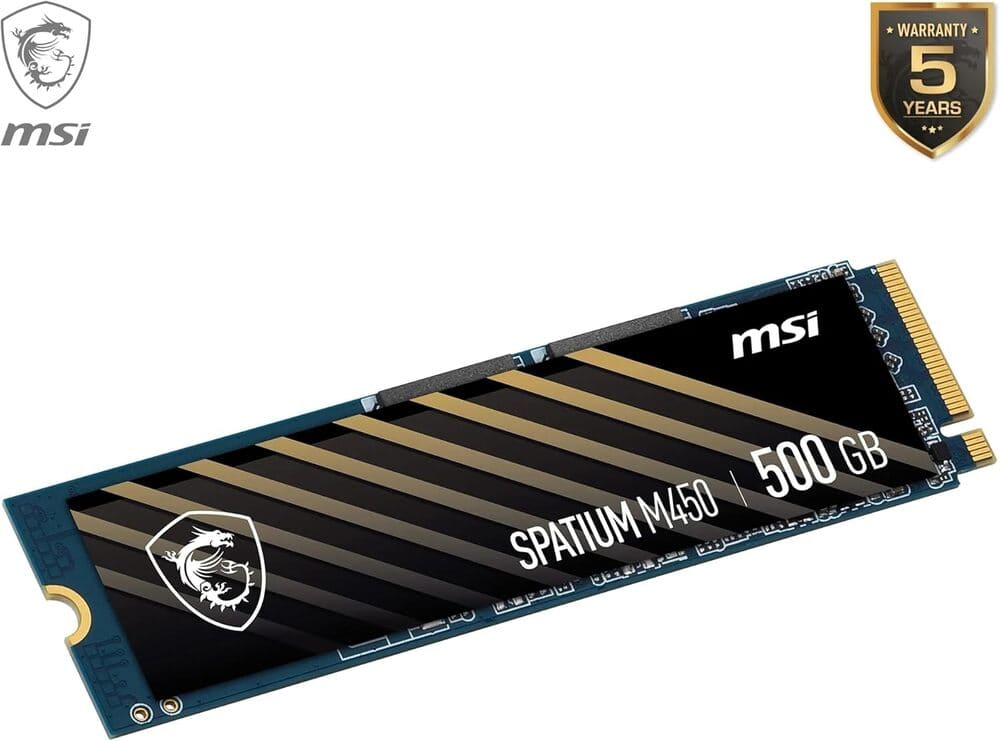

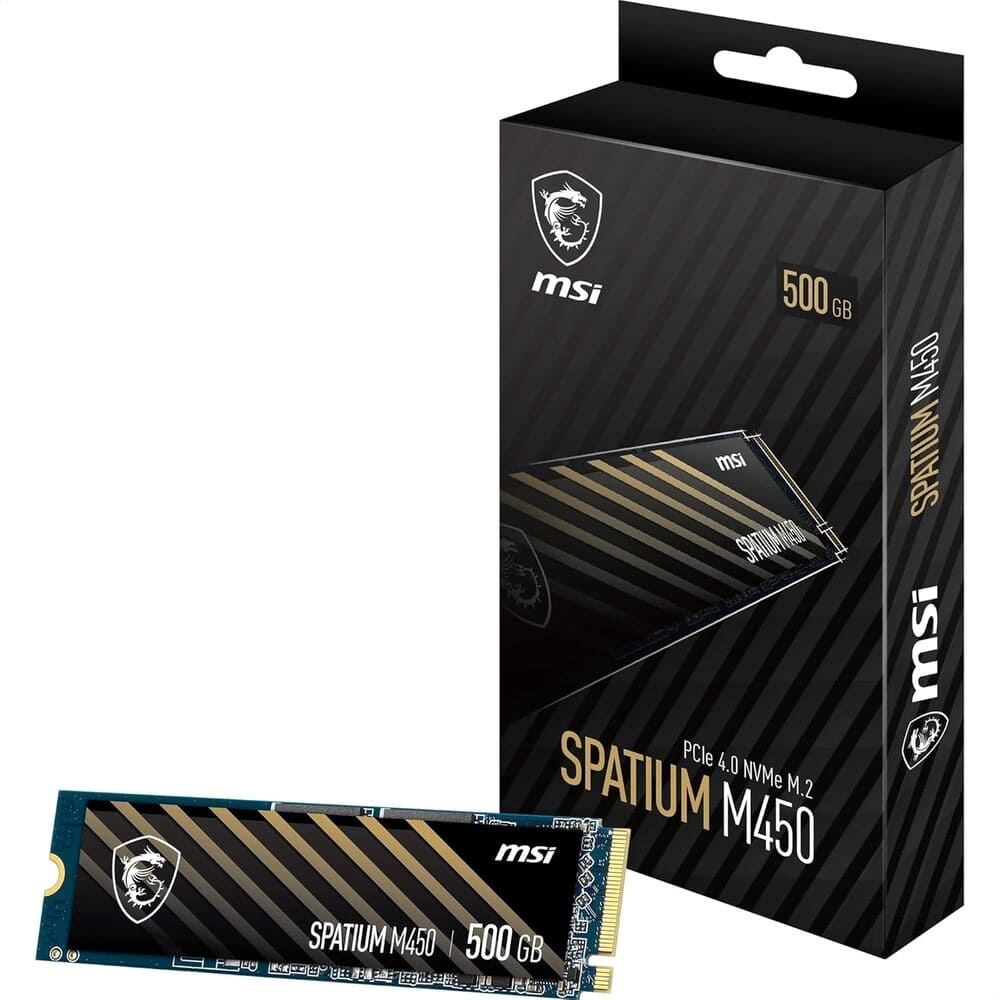

MSI Spatium M450 500GB PCIe 4.0 NVMe M.2 SSD
| Differences are marked in red | SPATIUM M450 PCIe 4.0 NVMe M.2 250GB | SPATIUM M450 PCIe 4.0 NVMe M.2 500GB | SPATIUM M450 PCIe 4.0 NVMe M.2 1TB | SPATIUM M450 PCIe 4.0 NVMe M.2 2TB |
|---|---|---|---|---|
| Model Name | SPATIUM M450 PCIe 4.0 NVMe M.2 | |||
| Capacity | 250GB | 500GB | 1TB | 2TB |
| Controller | PHISON E19T | |||

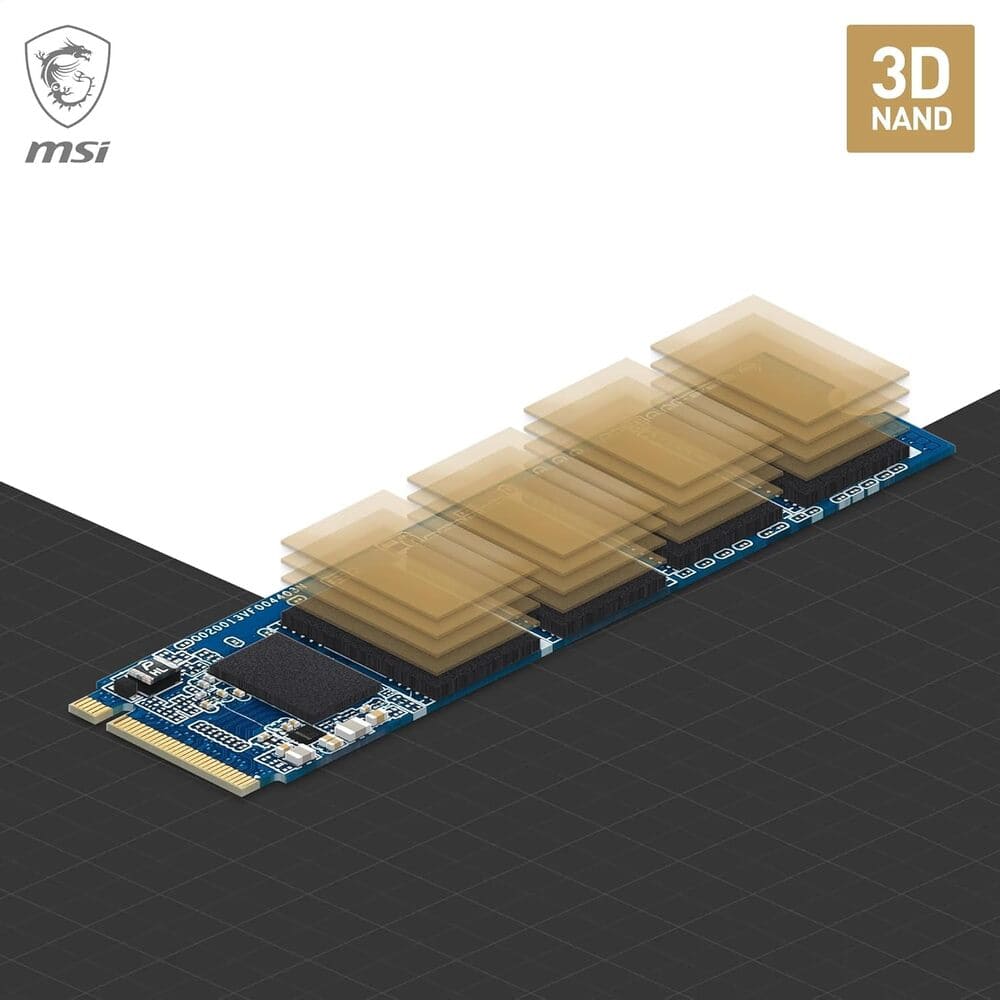

| Flash Memory | 3D NAND | |||
| Form Factor | M.2 2280 | |||
| Interface | PCIe Gen4x4, NVMe 1.4 | |||
| Compatibility | PCIe Gen4 / Gen3 / Gen2 / Gen1 | |||
| Dimensions | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) | |||

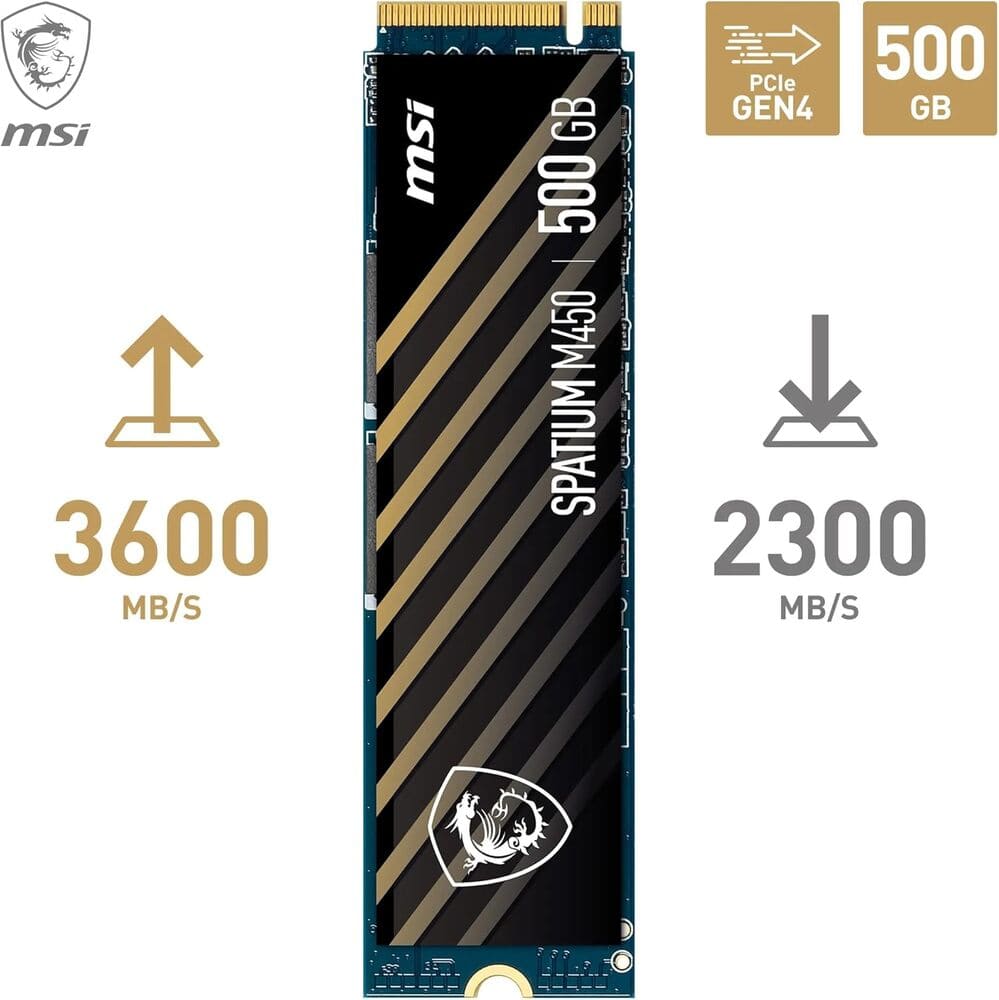

| Sequential Read up to (MB/s) | 3500 | 3600 | 3600 | 3300 |
| Sequential Write up to (MB/s) | 1200 | 2300 | 3000 | 3000 |
| Random Read 4KB up to (IOPS) | 150,000 | 300,000 | 420,000 | 380,000 |
| Random Write 4KB up to (IOPS) | 300,000 | 550,000 | 550,000 | 540,000 |
| Maximum Operating Power (W) | 3.4 | 3.4 | 4.0 | 4.5 |
| Idle Power PS3 (mW) | 40 | |||
| Low Power L1.2 (mW) | 5 | |||
| Operating Temperatures | 0°C – 70°C | |||
| Storage Temperatures | -40°C – 85°C | |||
| Terabytes Written (TBW) | 150 | 300 | 600 | 1200 |
| Mean Time Between Failure (MTBF) | Up to 1,500,000 Hours | |||
| Limited Warranty | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. | |||

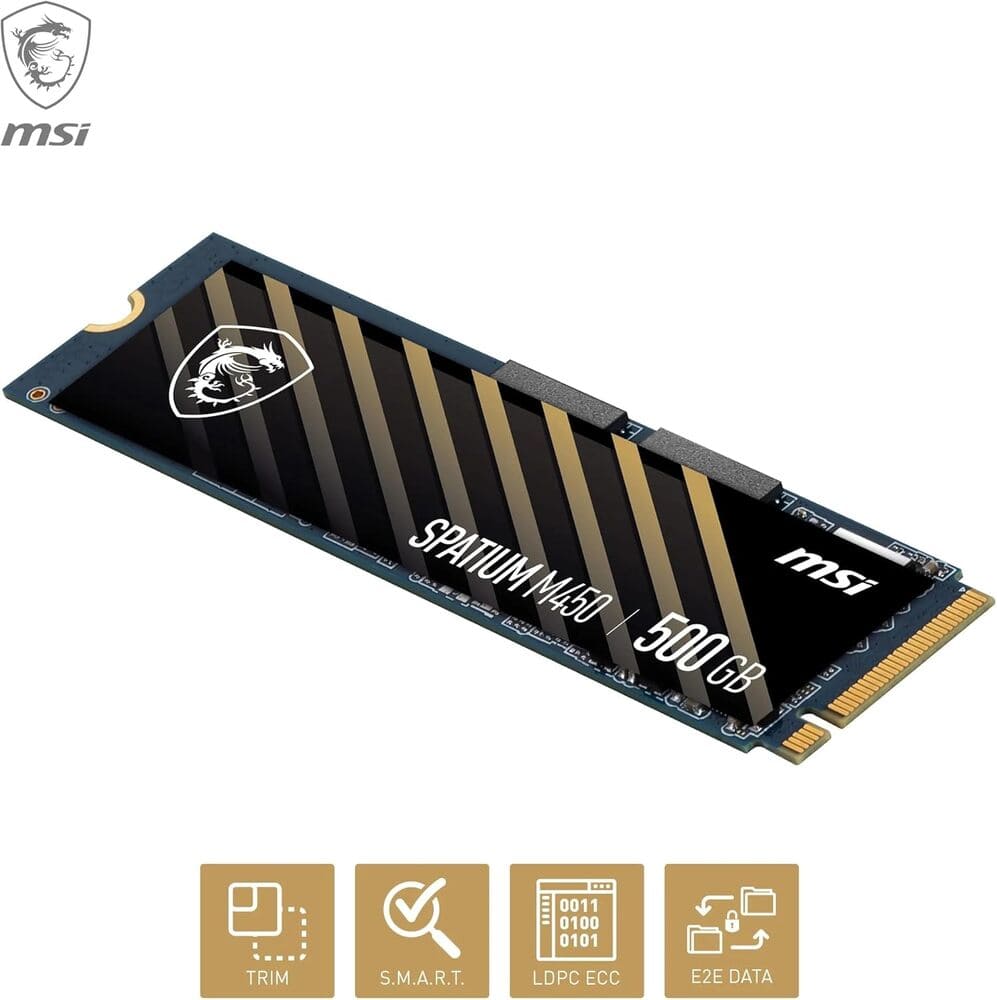

| Advanced Features | TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) Pyrite (Encryption, Data Security) |
|||
