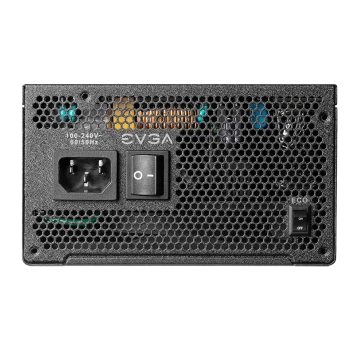

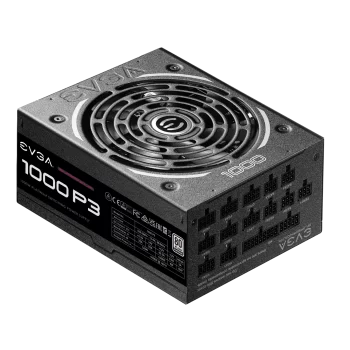

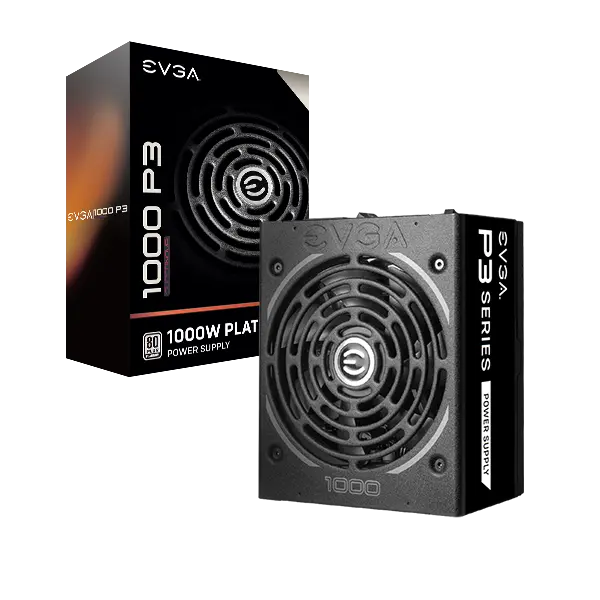

EVGA SuperNOVA 1000 P3 80 Plus Platinum 1000W Fully Modular 220-P3-1000-X2 Power Supply

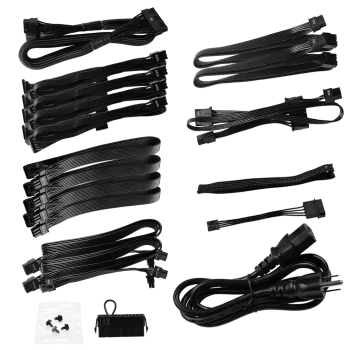

CABLE LENGTH
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 750mm (m) |
| PCIe Cable | 2x 750mm, 900mm (m) 4x 750mm (m) |
| SATA Cable | 4x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm (m) |
| Floppy Adapter | 1x 100mm |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |

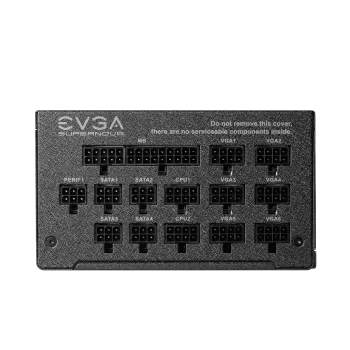

CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIe | 8x 8pin (6+2) |
| SATA | 12x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |

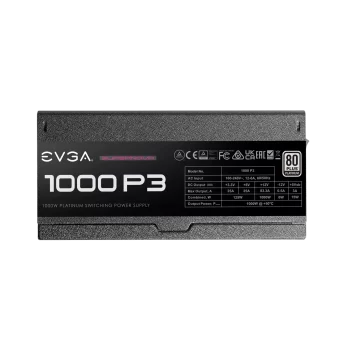

POWER SPECS
| AC Input | 100-240V~, 12-6A, 60/50Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 25A | 25A | 83.3A | 3A | 0.5A |
| 125W | 1000W | 15W | 6W | ||
| Total | 1000W | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 9.00 lbs |
| Size | 86mm (H) x 150mm (W) x 180mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
