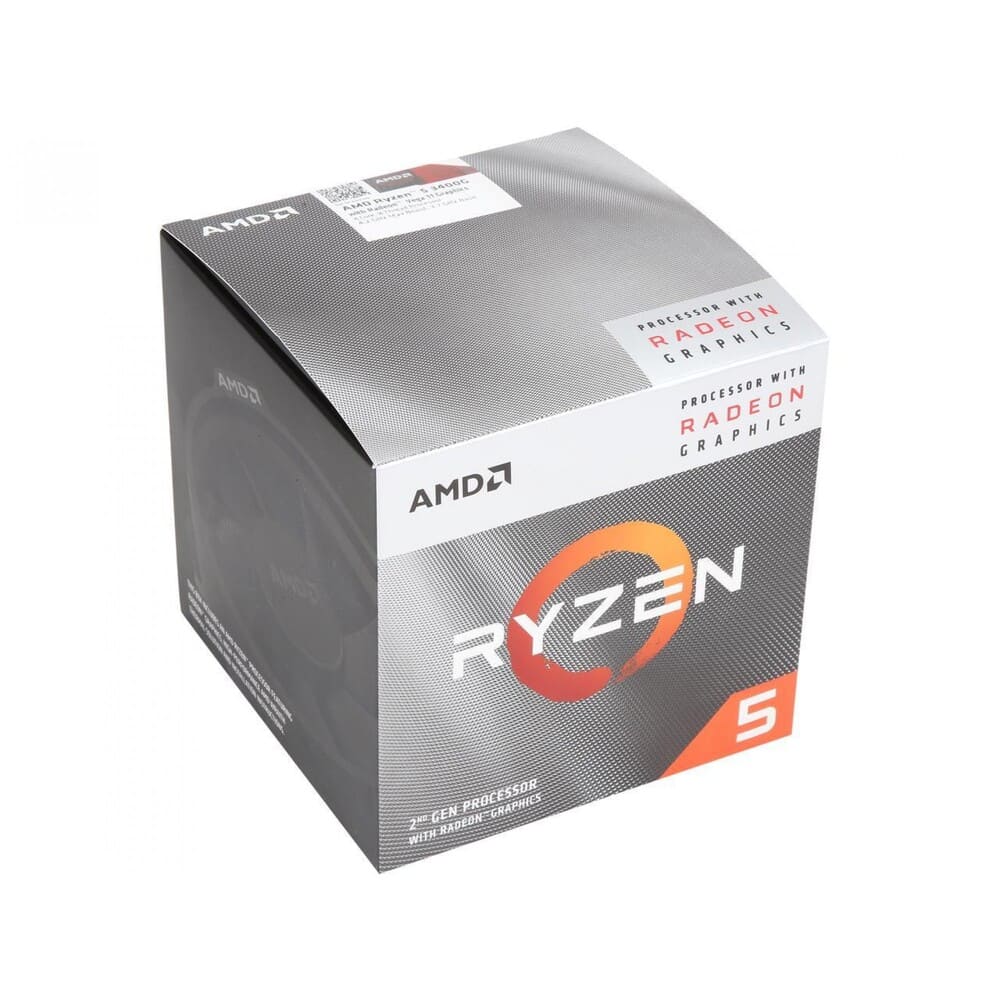

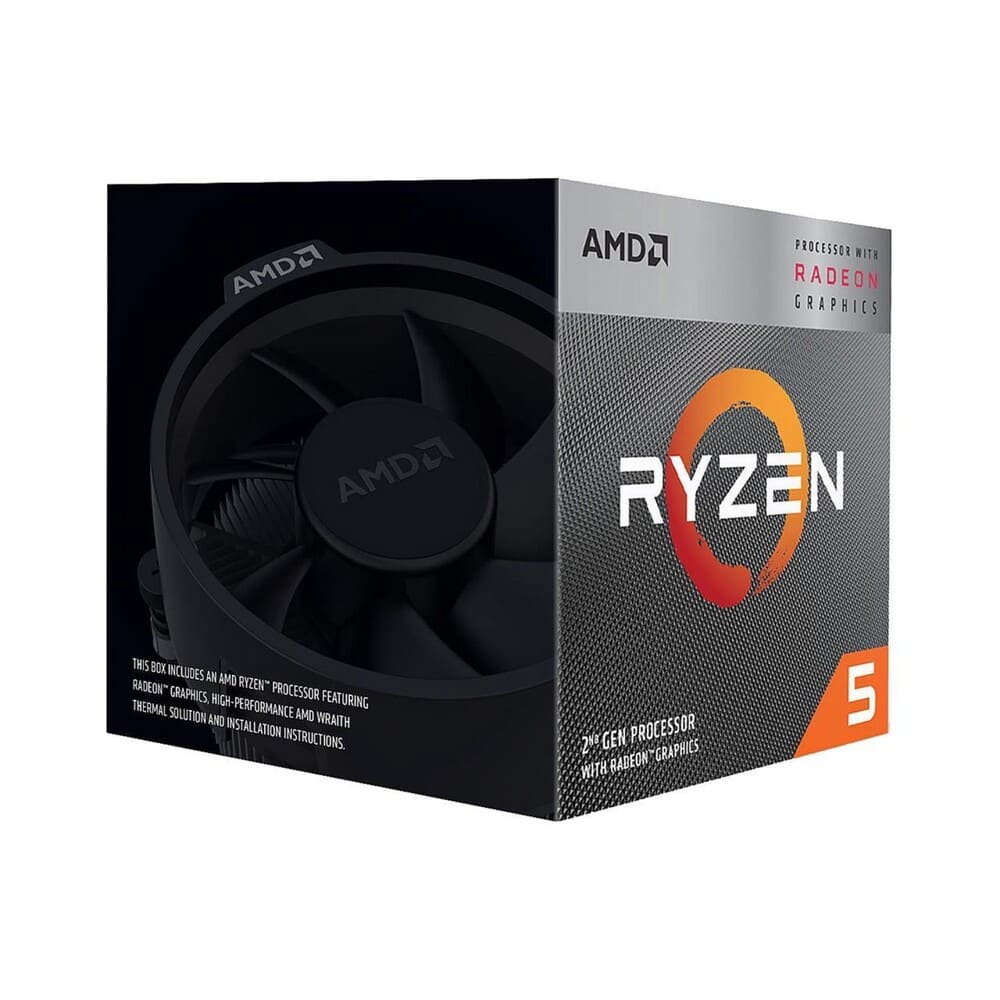

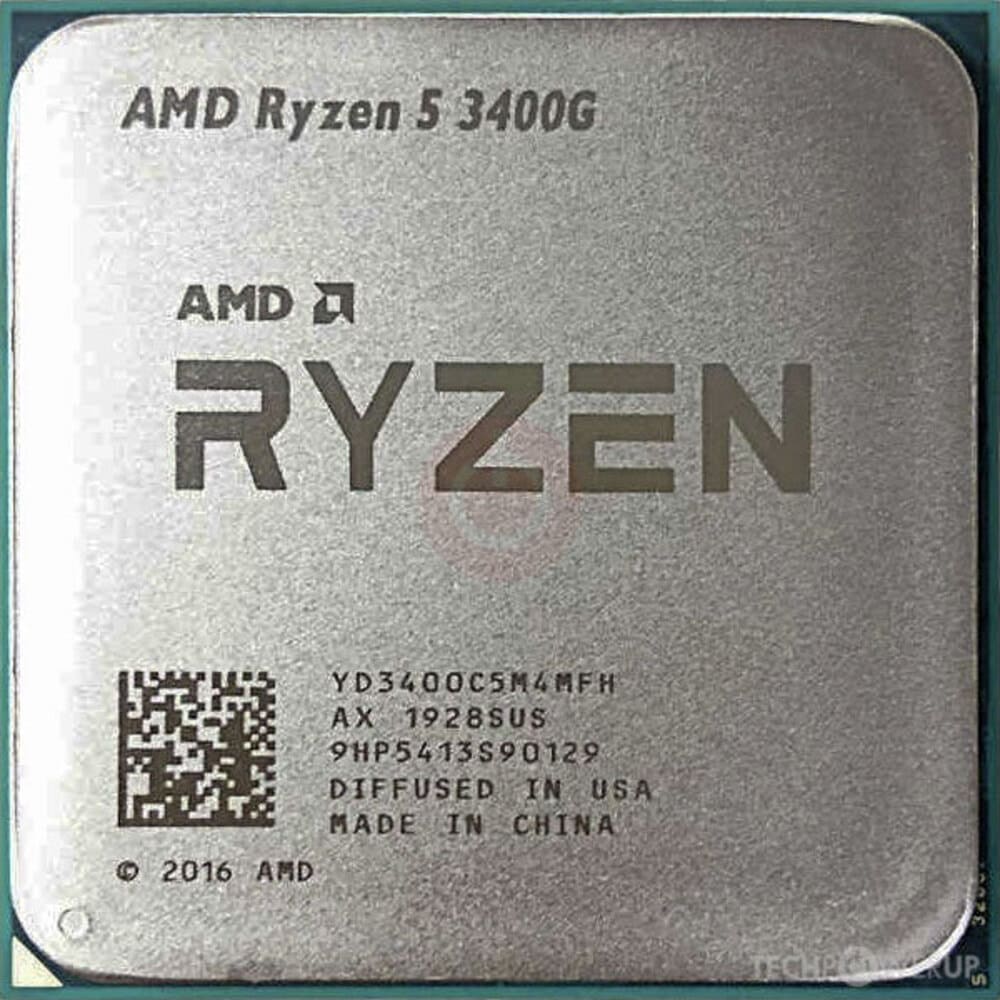

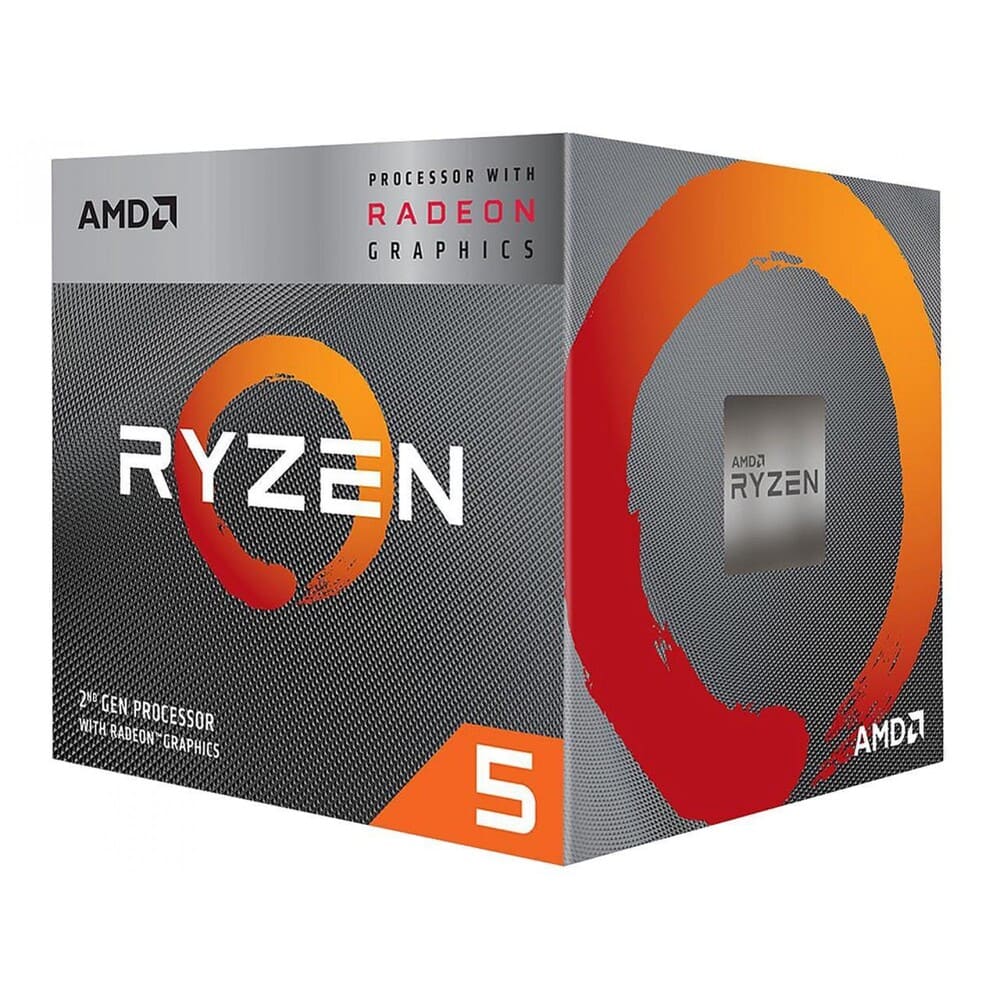

Name : AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics

Family : Ryzen

Series : Ryzen 3000 Series

Form Factor : Desktops, Boxed Processor

Market Segment : Mainstream Desktop

AMD PRO Technologies : No

Regional Availability : Global , China , NA , EMEA , APJ , LATAM

Former Codename : Picasso

Processor Architecture : Zen+

# of CPU Cores : 4

Multithreading (SMT) : Yes

# of Threads : 8

Max. Boost Clock Up to 4.2 GHz

Base Clock 3.7 GHz

L1 Cache : 384 KB

L2 Cache : 2 MB

L3 Cache : 4 MB

Default TDP : 65W

AMD Configurable TDP (cTDP) : 45-65W

Processor Technology for CPU Cores : 12nm FinFET

CPU Compute Die (CCD) Size : 210mm²

Package Die Count : 1

Total Transistor Count : 4.94 Billion

Unlocked for Overclocking : Yes

CPU Socket : AM4

Supporting Chipsets : X570 , X470 , X370 , B450 , B350 , A320

CPU Boost Technology : Precision Boost 2

Instruction Set : x86-64

Supported Extensions : AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) AMD Wraith Spire

Thermal Solution (MPK) AMD Wraith Spire

Max. Operating Temperature (Tjmax) : 95°C

Launch Date : 07/07/2019

*OS Support : Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Native USB 3.2 Gen 2 (10Gbps) : 0

Native USB 3.2 Gen 1 (5Gbps) : 4

Native USB 2.0 (480Mbps) : 0

Native SATA Ports : 0

PCI Express® Version : PCIe® 3.0

Native PCIe® Lanes (Total/Usable) : 20 , 16

Additional Usable PCIe Lanes from Motherboard

NVMe Support : Boot , RAID0 , RAID1 , RAID10

System Memory Type : DDR4

Memory Channels : 2

Max. Memory : 64 GB

System Memory Subtype : UDIMM

Max Memory Speed

ECC SupportYes (Requires mobo support)

Graphics Model : Radeon™ RX Vega 11 Graphics

Graphics Core Count : 11

Total Graphics Shaders : 704

Graphics Frequency : 1400 MHz

GPU Max. Memory : 2 GB

WDDM Version : 2.7

DirectX® Version : 12

OpenGL® : 4.6

OpenCL™ : 2.2

DisplayPort™ Version : 1.4a

DisplayPort Extensions : Adaptive-Sync , HBR3 , HDR Metadata

DisplayPort Max Refresh Rates (SDR) : 3840×2160 @ 60Hz , 3440×1440 @ 144Hz , 2560×1440 @ 180Hz , 1920×1080 @ 240Hz

DisplayPort Max Refresh Rates (HDR) : 3840×2160 @ 60Hz , 3440×1440 @ 60Hz , 2560×1440 @ 60Hz , 1920×1080 @ 120Hz

HDMI® Version : 2.0

HDCP Version Supported : 2.2

USB Type-C® DisplayPort™ Alternate Mode : Yes

Multi-Monitor Support : Yes

Max Displays : 3

AMD FreeSync™ : Yes

AMD Eyefinity Single Large Surface (SLS) : No

Wireless Display : Miracast

Max Video Encode Bandwidth (SDR)1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265

Max Video Decode Bandwidth1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc
