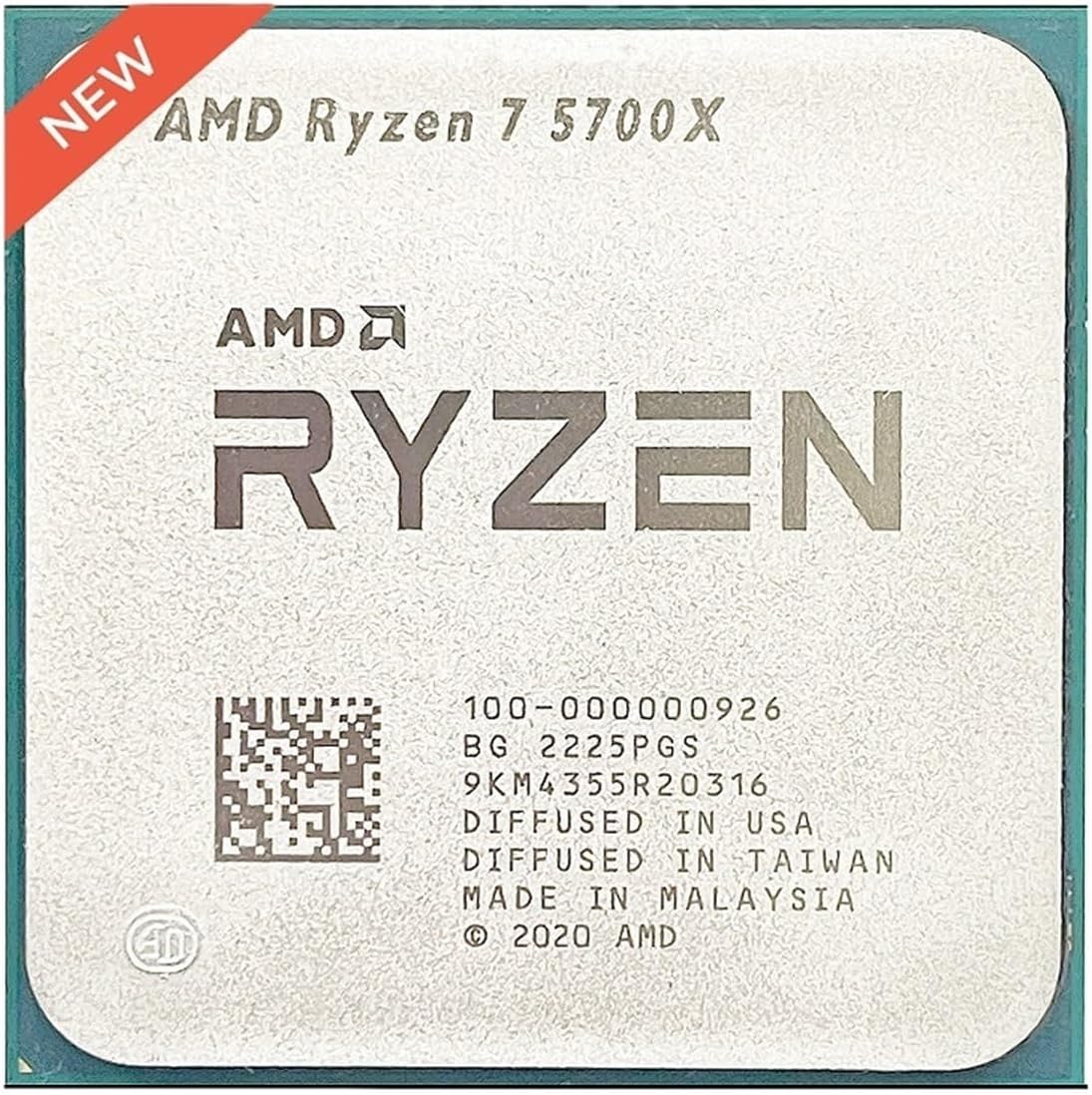

AMD Ryzen 7 5700X 3.4 GHz 8-Core, 16-Threads, AM4 Socket , 65W Processor Tray

• General Specifications

  Name : AMD Ryzen™ 7 5700X

  Family : Ryzen

  Series : Ryzen 5000 Series

  Form Factor : Desktops, Boxed Processor

  Market Segment : Enthusiast Desktop

  Regional Availability : Global , China , NA , EMEA , APJ , LATAM

  Former Codename : Vermeer

  Processor Architecture : Zen 3

  # of CPU Cores : 8

  Multithreading (SMT) : Yes

  # of Threads : 16

  Max. Boost Clock Up to : 4.6 GHz

  Base Clock : 3.4 GHz

  L1 Cache : 512 KB

  L2 Cache : 4 MB

  L3 Cache : 32 MB

  Default TDP : 65W

  Processor Technology for CPU Cores : TSMC 7nm FinFET

  Processor Technology for I/O Die : 12nm (Globalfoundries)

  CPU Compute Die (CCD) Size : 74mm²

  I/O Die (IOD) Size : 125mm²

  Package Die Count : 2

  Unlocked for Overclocking : Yes

  CPU Socket : AM4

  Supporting Chipsets : X570 , X470 , X370 , B550 , B450 , B350 , A520

  CPU Boost Technology : Precision Boost 2

  Instruction Set : x86-64

  Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

  Thermal Solution (PIB) : Not Included

  Max. Operating Temperature (Tjmax) : 90°C

  Launch Date : 04/04/2022

  *OS Support : Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

• Connectivity

  Native USB 3.2 Gen 2 (10Gbps) : 4

  Native USB 3.2 Gen 1 (5Gbps) : 0

  Native USB 2.0 (480Mbps) : 0

  Native SATA Ports : 2

  PCI Express® Version : PCIe® 4.0

  Native PCIe® Lanes (Total/Usable) : 24 , 20

  Additional Usable PCIe Lanes from Motherboard

  X570 : 16x Gen 4

  X470 : 2x Gen 3, 8x Gen 2

  NVMe Support : Boot , RAID0 , RAID1 , RAID10

  System Memory Type : DDR4

  Memory Channels : 2

  Max. Memory : 128 GB

  System Memory Subtype : UDIMM

  System Memory Specification : Up to 3200 MT/s

  Max Memory Speed

  2x1R : DDR4-3200

  2x2R : DDR4-3200

  4x1R : DDR4-2933

  4x2R : DDR4-2667

  ECC Support : Yes (Requires mobo support)

• Graphics Capabilities

  Graphics Model : Discrete Graphics Card Required

• Product IDs

  Product ID Boxed 100-100000926WOF* , 100-100000926WOZ*

  Product ID Tray 100-000000926

  Product ID MPK 100-100000926NPK* , 100-100000926KPK*

• Key Features

  Supported Technologies : AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium
